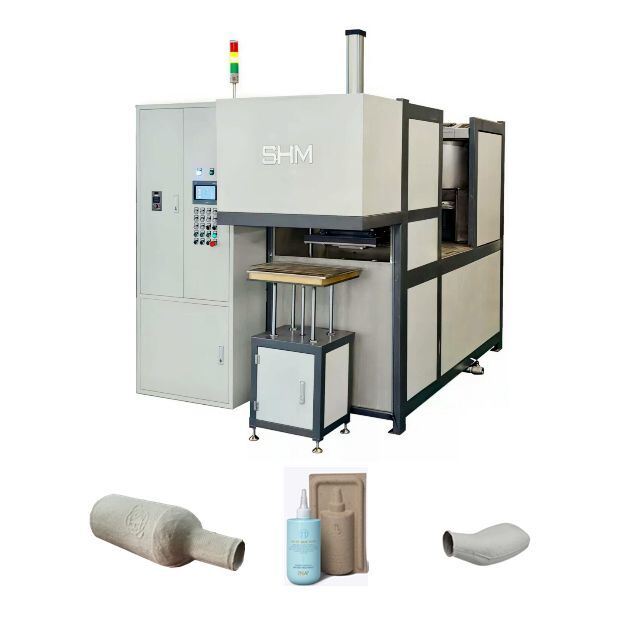

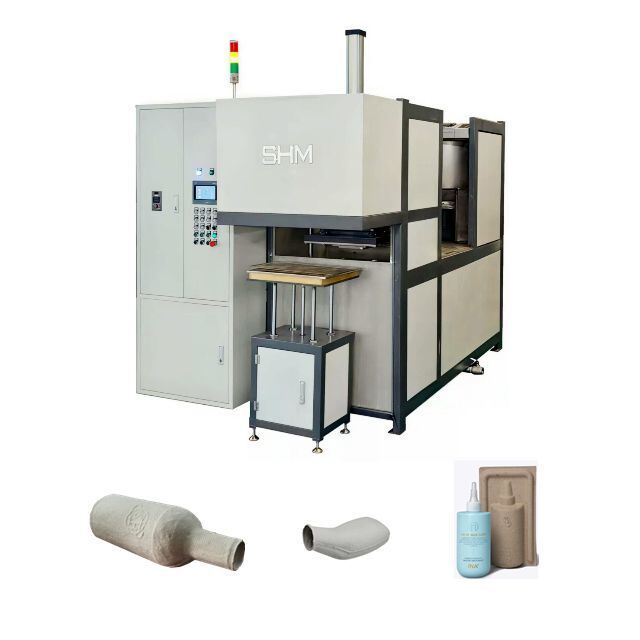

The paper bottle making machine is an advanced solution designed for manufacturing eco-friendly, biodegradable packaging as an alternative to plastic bottles. Our molded pulp bottle production line enables stable, high-efficiency production of fiber-based bottles suitable for wine, cosmetics, pharmaceuticals, and dry product packaging.
With increasing global demand for sustainable packaging, the paper bottle project has become a high-growth opportunity. Our equipment provides a complete, turnkey solution from raw material processing to finished bottle assembly.
What Is a Molded Pulp Bottle Machine?
A molded fiber bottle machine is specialized equipment that uses recycled pulp or natural fibers (such as bagasse or wood pulp) to form rigid, lightweight bottle structures through vacuum forming and thermoforming processes.
This system is also referred to as:
paper bottle manufacturing machine
pulp molded bottle equipment
fiber bottle making machine
molded pulp bottle production line
It is ideal for producing:
Paper wine bottles
Cosmetic containers
Pharmaceutical bottles
Dry food and healthcare packaging
Paper Bottle Manufacturing Process
The production of molded pulp bottles follows a precise and controlled process:
1. Pulping
Raw materials such as recycled paper or plant fibers are mixed with water to create a uniform pulp slurry. Additives like waterproofing agents or strength enhancers can be included depending on the application.
2. Forming
The pulp is shaped into bottle structures using vacuum suction forming molds. This step defines the basic geometry of the bottle.
3. Hot Pressing
The semi-formed bottle undergoes high-temperature pressing to achieve:
High strength
Smooth surface
Precise dimensions
Reduced moisture content
4. Trimming
Excess edges are removed to ensure clean finishing and dimensional accuracy.
5. Assembly
Depending on the application, additional processes include:
Inner liner insertion (for liquid packaging)
Surface coating or spraying
Cap fitting or sealing
Paper Wine Bottle (With Inner Liner)
For liquid applications such as wine, the molded pulp wine bottle typically adopts a plastic inner liner structure, which ensures:
Liquid sealing performance
Extended shelf life
Compatibility with existing filling systems
Key Features:
Outer shell: molded fiber (eco-friendly, strong, customizable)
Inner liner: plastic (PET or similar, removable or integrated)
Customizable shape, branding, and surface texture
This hybrid structure balances sustainability with functionality, making it a practical solution for replacing traditional glass bottles.
Molded Pulp Bottle Without Inner Liner
For dry product applications, such as:
Health supplements
Pharmaceutical tablets
Powder products
The paper bottle manufacturing machine can produce bottles without inner liners, offering a fully biodegradable solution.
Advantages:
100% plastic-free structure
Lightweight and cost-effective
Suitable for dry goods packaging
Strong branding and eco-positioning
We provide full support from concept to mass production:
Step 1: Bottle Design
Customized bottle structure based on your product requirements, branding, and market positioning.
Step 2: Sampling
Prototype samples are produced to validate design, strength, and functionality.
Step 3: Mold Development
High-precision molds are developed for forming and hot pressing processes.
Step 4: Machine Design
Tailored paper bottle production line configuration based on capacity and product specifications.
Step 5: Industrial Production
Full-scale production line installation, training, and technical support.
Paper Bottle Manufacturing Questions
Can paper bottles hold liquids?
Yes. Paper bottles designed for liquids typically include an inner liner (such as PET) to ensure proper sealing and prevent leakage.
What materials are used in paper bottles?
Common materials include:
Recycled paper pulp
Bagasse (sugarcane fiber)
Wood pulp
Functional additives (waterproofing, strengthening agents)
How thick is a molded pulp bottle?
The thickness usually ranges from 1.5 mm to 5 mm, depending on the application and strength requirements.
Can paper bottles replace plastic bottles?
For many applications, especially dry products and certain liquid packaging, paper bottles can partially replace plastic bottles, offering a more sustainable alternative.
What equipment is required to produce paper bottles?
A complete molded pulp bottle production line includes:
Pulping system
Forming machine
Hot press system
Trimming unit
Assembly and finishing system
With the global shift toward sustainable packaging, investing in a paper bottle manufacturing machine offers strong market potential and long-term growth.
Whether you are targeting wine packaging, cosmetics, or pharmaceutical products, our pulp molded bottle equipment provides a reliable and scalable solution.
If you are planning a paper bottle project, we can help you turn your concept into a profitable production line.
