Paper Pulp Forming Machine | Small Egg Tray Machine | Small Molded Pulp Machine

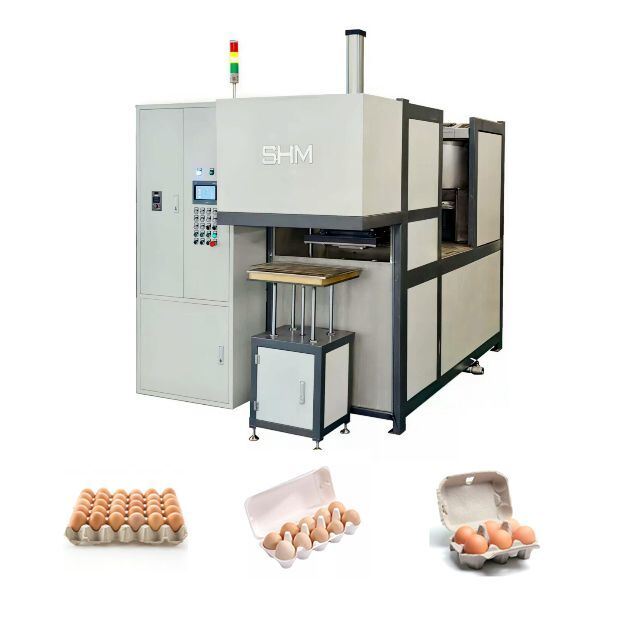

The SHM SHW-360 Mini Bagasse Pulp Molding Machine is a compact, all-in-one forming system designed for universities, research labs, R&D centers, and small-batch production. It supports multiple raw materials, including sugarcane bagasse pulp, wood pulp, bamboo pulp, and recycled paper.
Its integrated design allows flexible configuration:
Pulping
Forming
Optional Drying (oven or drying line)
Optional Hot-pressing (integrated or standalone)
This makes the SHW-360 ideal for sample making, prototyping, formula testing, small production orders, and mold development.
Fully automatic pulping & forming
Optional hot-press shaping for premium products
Supports wide range of biodegradable fibers
Compact footprint suitable for labs and small factories
Fast mold change and adjustable forming cycle
Supports custom voltage / Hertz / mold size
| Item | Parameter |
|---|---|
| Machine Name | SHW-360 |
| Overall Machine Size | 3285 × 2025 × 2640 mm |
| Forming Template Size | 550 × 500 mm (Max 600 × 550 mm) |
| Forming Machine | 1 set |
| Custom Mold | 1 set |
| Vacuum Pump | 1 unit |
| Screw Air Compressor + Air Tank | 1 set |
| White Water Pump | 1 unit |
| Pulp Pump | 1 unit |
| Hydrapulper | 1 unit |
| Pulp Agitator | 1 unit |
| Forming Efficiency | Up to 5 cycles/min (depends on product) |
| Ladder | 1500 × 500 × 750 mm |
| Receiving Table | 500 × 420 × 675 mm |
| Manual Cleaning Gun | Included |
Check video→ https://www.youtube.com/watch?v=DcKeGuqTIag
Raw materials (bagasse pulp board, wood pulp, recycled paper, etc.) are crushed, diluted, and homogenized using:
Hydrapulper
Pulp pump
Agitator
White-water recycling system
The slurry enters the forming system where vacuum suction shapes the wet fiber onto the metal mold.
Depending on your needs:
Independent drying oven
Independent drying line
Or air drying (for thick/low-precision trays)
For premium products such as:
Tableware
Cosmetic trays
Mobile phone insert trays
Hot pressing improves surface smoothness, strength, and dimensional accuracy.
Yes. SHM can customize voltage, frequency, mold size, air compressor connection, machine dimensions, and additional modules.
Yes. The entire water system is fully recycled. Only equipment cleaning requires a small discharge.
Standard sample products are around 10 cm, and we can try 12–18 cm depending on mold design.
Egg trays / nursery pots: recycled paper, cardboard
Premium items (tableware, cosmetic trays): bagasse pulp, wood pulp, bamboo pulp, mixed pulp
SHM offers integrated hot-press or standalone hot-press machines for premium production
No. Sugarcane residue must be processed into pulp board by a paper-making process before use.
Over 30 years of pulp molding expertise
Full in-house R&D, mold design, and machine manufacturing
Trusted by leading partners:
SABERT Group, MOLPACK Group, BARAMIST Group, China Agricultural University, Maejo University, SHENGQUAN Group, KOCEL Group etc.
Strong global service, CE certification, and stable installation cases worldwide
One-stop solution — pulp preparation, forming, hot-pressing, drying.
Sample confirmation before shipment to ensure results meet expectations.
Long-term technical support & spare parts supply.
Professional consultation on fiber formulation and forming process.
